SharkBite
DESCRIPTION

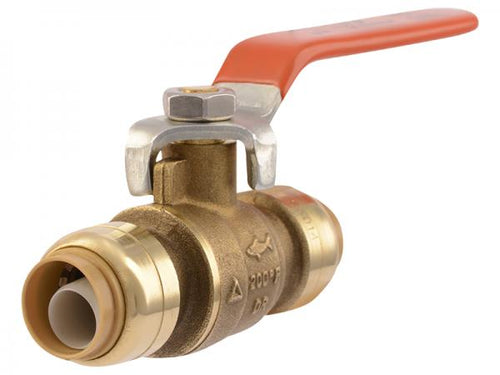

The SharkBite® Ball Valves are high quality forged brass ball valves with SharkBite connections. The SharkBite connections allow the user to connect the ball valves to copper tubing, CPVC, PEX and PE-RT in seconds with relative ease.
FEATURES AND BENEFITS
Convenient single lever control: Makes them easy to use and encourages shut-off of water supply. Full Port Ball Valve: Allows water to flow freely through valve. Instant push-to-connect connections for increased ease of use: No soldering, clamps, unions, or glue required. Valve assembled to strict quality standards: Measured thread engagement, measured torque.
SPECIFICATION DATA
Performance: Maximum pressure .................... 200 psi
Maximum temperature .............. 200°F (water)
Service ...................................... Water
Ball Valve Materials: Body .......................................... DZR Lead Free Brass
Seat Ring ................................... PTFE
Ball ............................................ Brass, chrome plated
Body End Retainer .................... Brass
Stem .......................................... Brass
O-ring ......................................... EPDM
Packing ...................................... PTFE
Packing Nut ............................... Brass
Handle ....................................... Zinc plated steel
Handle Nut ................................ Zinc plated steel
SharkBite Materials:
Body .......................................... DZR Lead Free Brass
Grab Ring .................................. Stainless steel
Tube support liner ..................... Veradel
CERTIFICATIONS
The SharkBite Ball Valve 1/2", 3/4" and 1" are certified to IGZ-157, NSF/ANSI 61, NSF 372 and listed by IAPMO.
