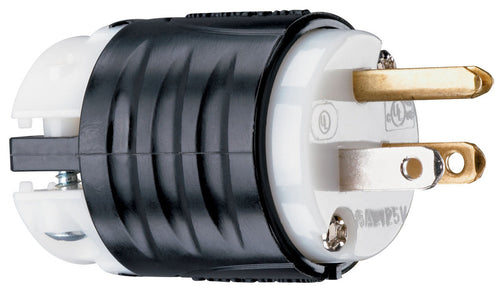

Straight Blade Plug 2-Pole 3-Wire 15A 125V Gray
FEATURES
- Unit arrives completely ready-to-wire, cuts installation time significantly.
- Nylon housing provides impact and chemical resistance.
- Rugged two-piece cord grip provides more uniform cord retention.
- Internal dust shield keeps terminals free of contaminants.
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
- Cord-grip screws recessed to protect installer against screwdriver head slippage.
- For covering patents, see www.legrand.us/patents.
Technical Information
| Amperage |
15 A |
| Connection |
Wire Grounding |
| Number of Poles |
Double Pole |
| Number of Wires |
3 |
| Wire Size |
4 |
